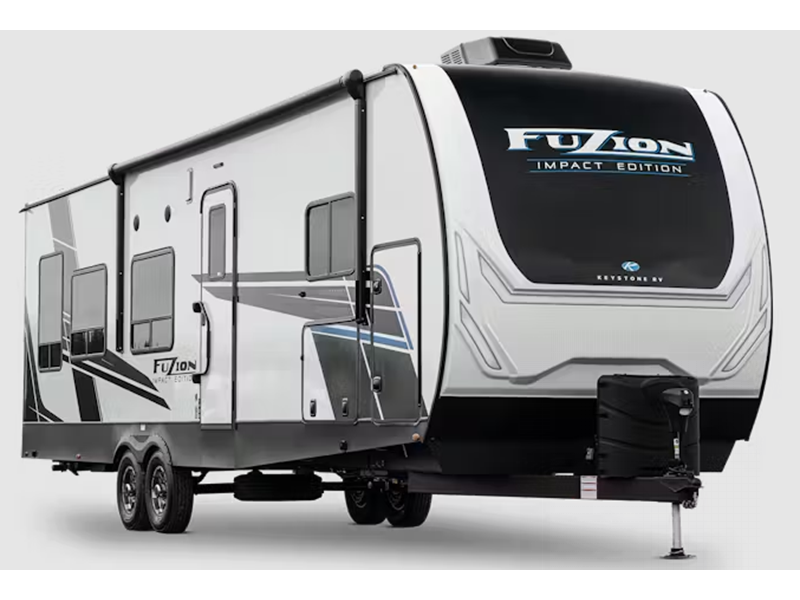

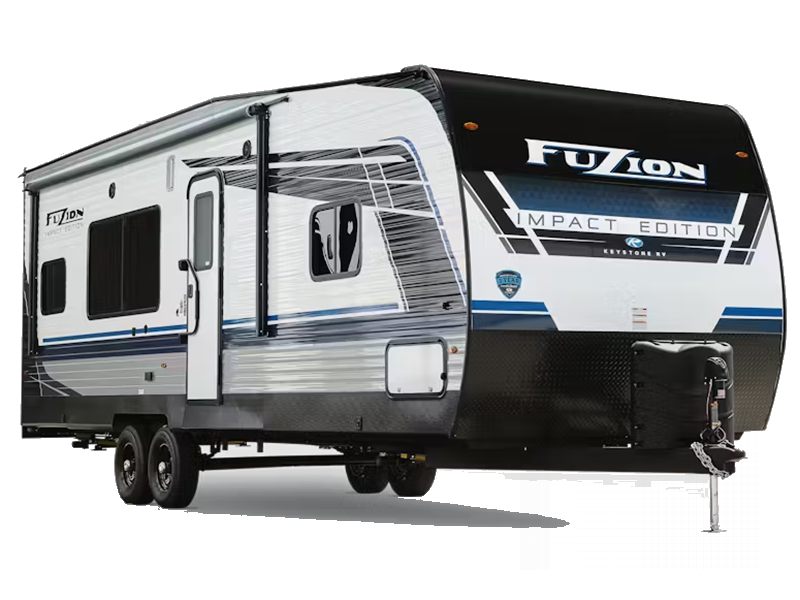

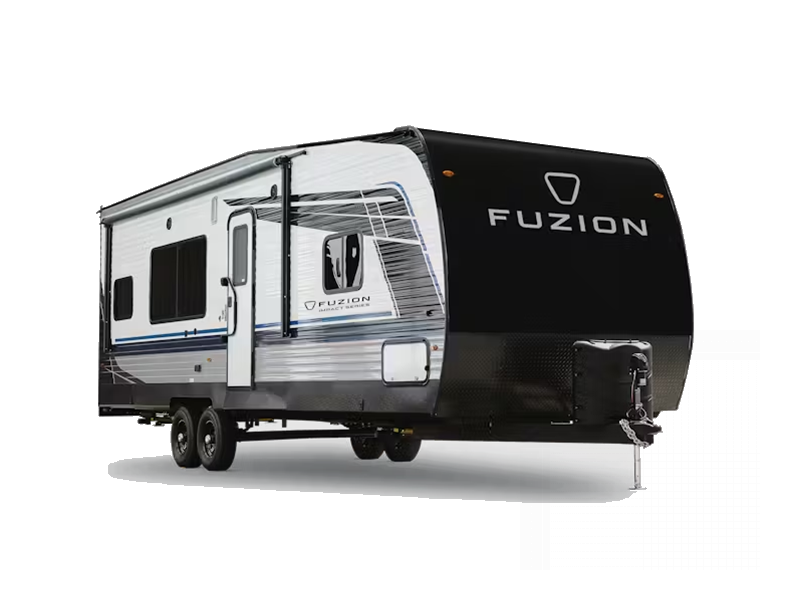

The Fuzion Impact Edition toy haulers by Keystone offer a lighter, easy-to-tow travel trailer or fifth wheel that is focused on value and fun. The Fuzion Impact Edition is tougher when you need it, and provides technology that transforms and offers unexpected conveniences.



Each model features aluminum constructed laminated fiberglass sidewalls, a leaf spring suspension system, and Tru-fit slide construction for durability and added protection against the elements. The state-of-the-art SolarFlex system comes standard with each toy hauler that will allow you to go off-grid if you choose and enjoy a renewable energy source. Inside, you will love the extra tall slide height, the carpet-free fiberglass backed linoleum floor, and the hardwood cabinetry in the kitchen. And check out the garage with its gas/oil resistant tuff-ply flooring, ducted A/C and heating, and additional sleeping space for guests!



Be honest with yourself, you want a good price, robust construction and an easy way to tow your toys. Choose a Keystone Fuzion Impact Edition toy hauler travel trailer or toy hauler fifth wheel today!

  • Fuzion Impact Edition 28V

    Fuzion Impact Edition 28V Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition Vapor Lite toy hauler 28V highlights: Dual Entry ... more about Fuzion Impact Edition 28V

    Specifications

    Sleeps 6
    Slides 1
    Length 32 ft 8 in
    Ext Height 12 ft 2 in
    Interior Color Brindle, Glacier
    Hitch Weight 1225 lbs
    Dry Weight 7666 lbs
    Cargo Capacity 2334 lbs
    Fresh Water Capacity 54 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST225/75R15E
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Available Beds Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 4400 lbs
    Garage Size 10 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 18' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

  • Fuzion Impact Edition 330

    Fuzion Impact Edition 330 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 330 highlights: Peninsula Countertop ... more about Fuzion Impact Edition 330

    Specifications

    Sleeps 8
    Slides 2
    Length 37 ft 6 in
    Ext Height 12 ft 4 in
    Interior Color Brindle, Glacier
    Hitch Weight 1415 lbs
    Dry Weight 9597 lbs
    Cargo Capacity 3403 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 30 gals
    Tire Size ST235/80R16F
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 12 ft 6 in
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 50 amp

    Similar Floorplans

  • Fuzion Impact Edition 25V

    Fuzion Impact Edition 25V Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition Vapor Lite toy hauler 25V highlights: Open ... more about Fuzion Impact Edition 25V

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 28 ft 10 in
    Ext Height 12 ft 2 in
    Interior Color Brindle, Glacier
    Hitch Weight 1015 lbs
    Dry Weight 7040 lbs
    Cargo Capacity 2760 lbs
    Fresh Water Capacity 54 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size ST225/75R15E
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Available Beds RV Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Garage Size 15 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 18' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp
  • Fuzion Impact Edition 29V

    Fuzion Impact Edition 29V Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition Vapor Lite toy hauler 29V highlights: U-Shaped ... more about Fuzion Impact Edition 29V

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 33 ft 10 in
    Ext Height 12 ft 2 in
    Interior Color Brindle, Glacier
    Hitch Weight 1225 lbs
    Dry Weight 8151 lbs
    Cargo Capacity 1849 lbs
    Fresh Water Capacity 54 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 30 gals
    Tire Size ST225/75R15E
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Available Beds RV Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 4400 lbs
    Garage Size 10 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 18' Electric with Adjustable Arms, Auto Dump, LED Lights
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

  • Fuzion Impact Edition 317

    Fuzion Impact Edition 317 Floorplan Image

    Take a Virtual Tour

    Keystone Fuzion Impact Edition toy hauler 317 highlights: 11' Separate Garage ... more about Fuzion Impact Edition 317

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 2
    Length 37 ft 6 in
    Ext Width 8 ft
    Ext Height 12 ft 4 in
    Interior Color Brindle, Glacier
    Hitch Weight 1680 lbs
    Dry Weight 9700 lbs
    Cargo Capacity 3300 lbs
    Fresh Water Capacity 94 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 30 gals
    Tire Size ST235/80R16F
    Furnace BTU 35000 btu
    Fuel Capacity 30 gals
    Number Of Bunks 1
    Available Beds RV Queen
    Refrigerator Type Gas/Electric
    Refrigerator Size 8 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight 7000 lbs
    Garage Size 11 ft
    LP Tank Capacity 30 lbs
    Water Heater Type Girard On Demand
    TV Info LR LED TV
    Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Light Strip
    Axle Count 2
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo
    Electrical Service 50 amp

    Similar Floorplans

Fuzion Impact Edition Features:

Standard Features (2023)



PLEASE NOTE: Features and options separated by type below

---------------------------------------------------------

TRAVEL TRAILERS

Exterior

  • 10"/12" I-beams w/ frame welded tie downs and 100" wide body (Select Models)
  • 8" I-beams and 100" wide body (Select Models)
  • Aluminum constructed laminated fiberglass sidewalls
  • Large panoramic tinted safety glass windows w/ black framing
  • Dual-pane frameless windows (Select Models)
  • Diamond plate rock guard on cap
  • 3/4 front cap (Select Models)
  • Norco cable driven slide system w/ manual backup
  • One-piece polypropylene heated underbelly (enclosed tanks and valves)
  • 7,000 lb. flipped Dexter® E-Z Lube axles w/ 12" x 2" brakes on every wheel (Select Models)
  • 4,400 lb. flipped Dexter® E-Z lube axles (Select Models)
  • Leaf spring suspension system
  • 16" aluminum wheels w/ F-rated tires (Select Models)
  • 15" aluminum wheels w/ E-rated tires (Select Models)
  • Electric front and rear stabilizer jacks
  • 30” wide entry doors
  • Lighted pass-through storage
  • Battery disconnect
  • Onan 5500 watt gasoline generator (Select Models)
  • Onan 4000 watt gasoline generator (Select Models)
  • 100 gal. fresh, 60 gal. gray, 30 gal. black (Select Models)
  • 60 gal. fresh, 60 gal. gray, 30 gal. black (Select Models)
  • Fuel station w/ 12V pump, 30-gal. tank, and static line
  • 50-AMP service w/ detachable marine power cord (Select Models)
  • 30-AMP service w/ detachable marine power cord (Select Models)
  • Exterior shower w/ hot and cold water
  • Electric awning w/adjustable arms, auto dump, and LED light strip

Interior

  • Fiberglass backed linoleum floor (carpet-free)
  • Extra tall slide height
  • Night shades
  • Designer upholstered window valances
  • Residential-style furniture w/ heated seats, LED lights, massage, and 110v/USB ports (Select Models)
  • 3-seat sofa w/ LED, heat, and massage IPO booth dinette (Select Models)

Keystone Exclusives

  • Color-coded unified wiring standard
  • 4G LTE and Wi-Fi prep
  • Tuf-Lok™ thermoplastic duct joiners
  • KeyTV™ multisource signal controller
  • In-floor heating ducts
  • Tru-fit™ slide construction

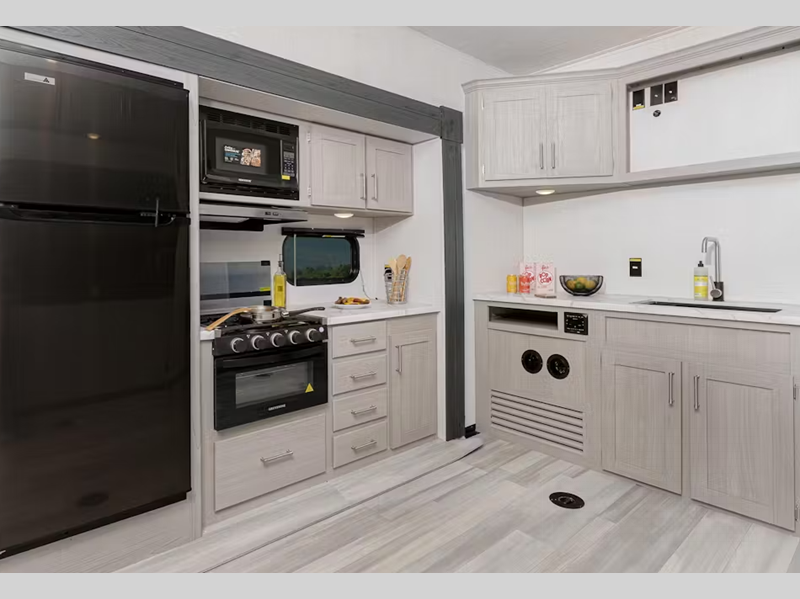

Kitchen

  • Hardwood cabinetry
  • Full-extension ball bearing drawer guides
  • Deep, single basin, stainless steel sink
  • High-rise faucet w/ pull-out sprayer
  • Swivel bar stools
  • Booth dinette

Appliances & Utilities

  • (2) 30 lb. LP tanks
  • Omni Chill™ 3/4 ton high efficiency A/C
  • 2nd ¾ ton A/C (Select Models)
  • 35K BTU furnace
  • Girard On Demand Hot Water Heater
  • LED TV and Bluetooth® CD/DVD player w/ MP3 connection, 2 interior, and 2 exterior speakers
  • 8 cu. ft. gas/electric refrigerator
  • Microwave oven
  • Furrion® 3-burner gas range and stove w/ low profile hood vent
  • Recessed LED puck lighting throughout

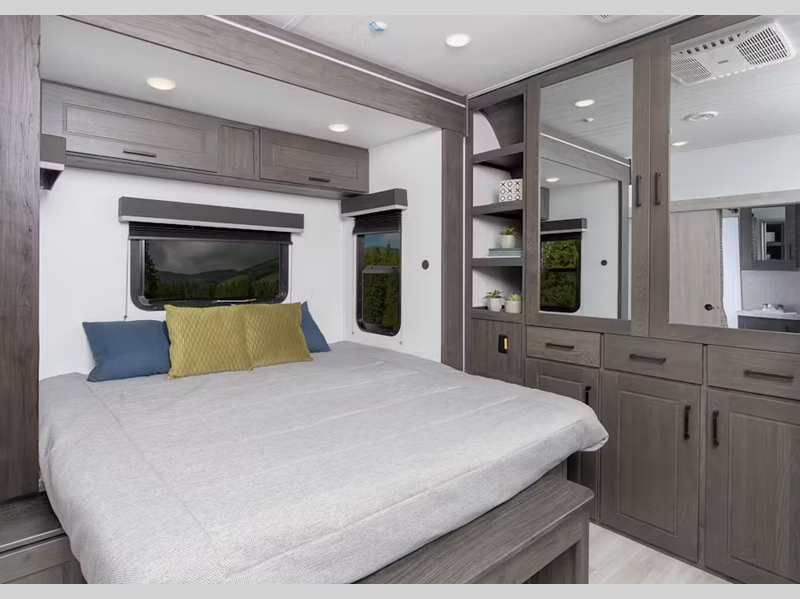

Bedroom

  • 60" x 80" residential queen-sized bed
  • Reading lights
  • Bedside outlets/USB
  • Under bed storage
  • TV hook-up
  • TV prep

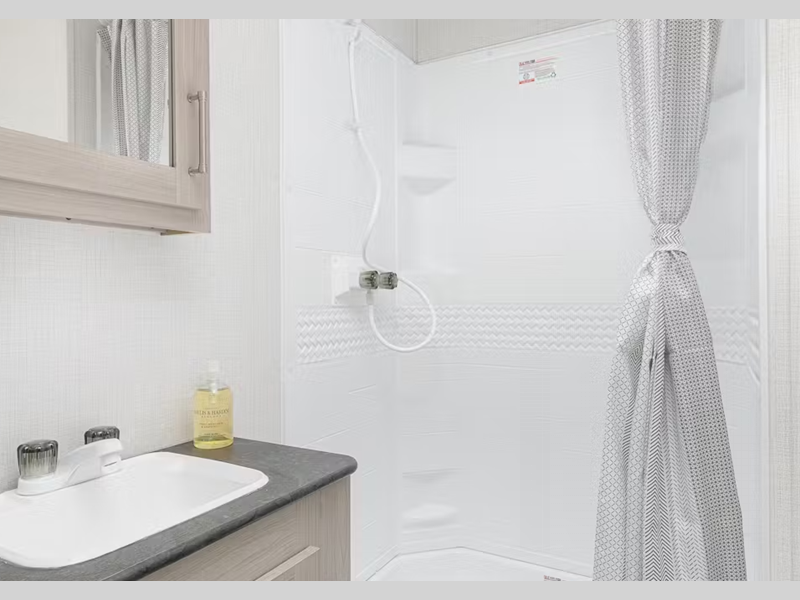

Bathroom

  • Pressed countertops
  • Skylight over tub
  • Porcelain base foot flush toilet

Safety

  • Tire Pressure Monitoring System on all tires w/ Display
  • Breakaway switch and safety chains
  • GFI receptacles
  • Carbon monoxide detector
  • Smoke detector
  • Propane gas leak detector
  • Fire extinguisher

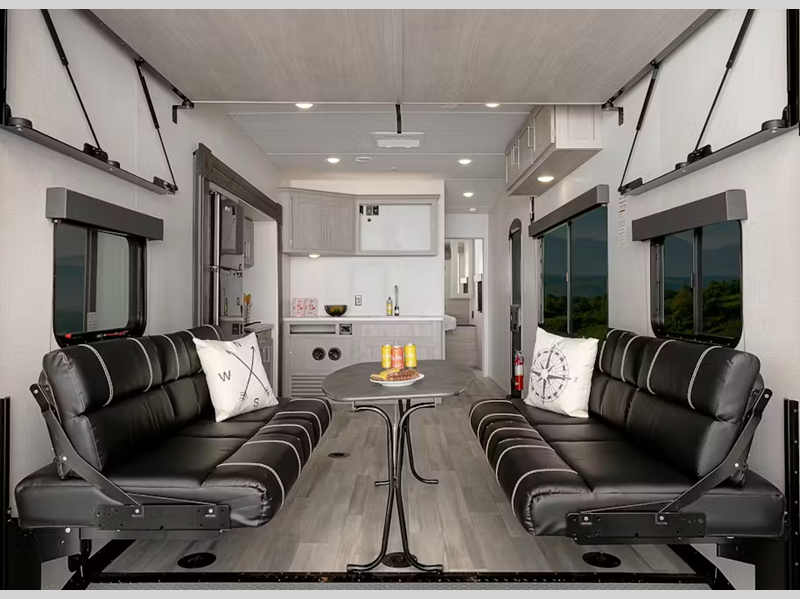

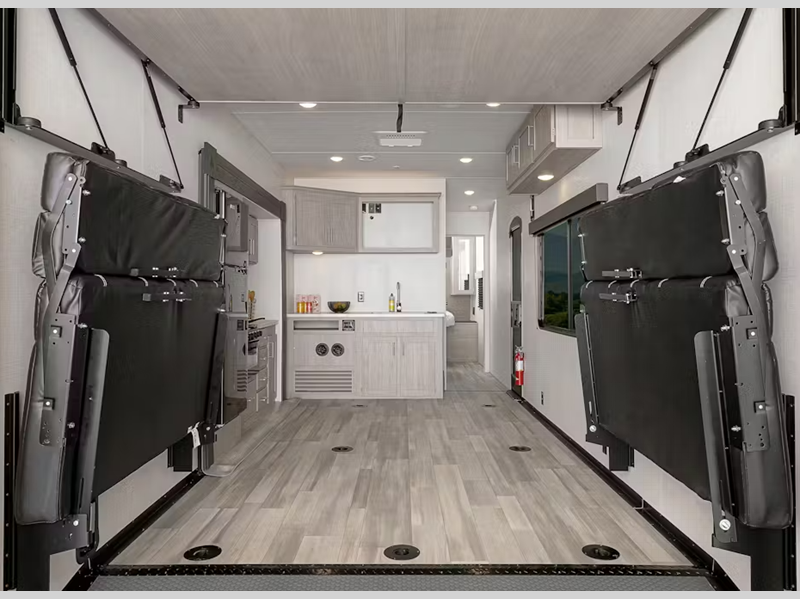

Garage

  • Gas/oil resistant tuff-ply flooring
  • 5k interlock system w/ frame welded tie-downs
  • 8’ ramp door
  • Ducted A/C, ducted heat
  • (2) metal ram air vents

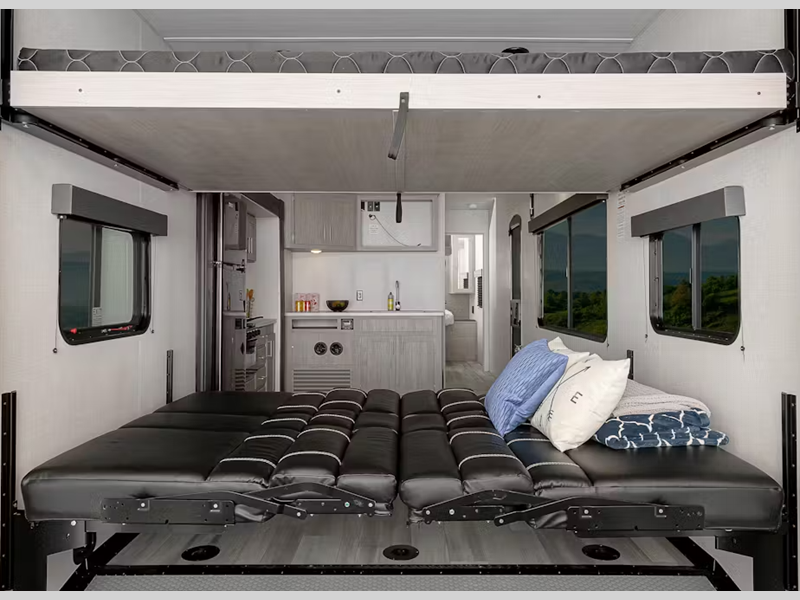

  • Dual electric beds w/ collapsible roll-over sofa
  • HappiJac® bed system w/ table and upper bunk

SolarFlex

  • SolarFlex™ 200
  • SolarFlex™ 400i (Optional)
  • (2) 100 AMP Hour Dragonfly Lithium Batteries

Individual Options

  • Rear patio package

-----------------------------------------------------------------

FIFTH WHEELS

Exterior

  • 10"/12" I-beams w/ frame welded tie downs and 100" wide body
  • Rota-Flex™ pin box
  • Aerodynamic fiberglass front cap w/ lights and improved turning radius
  • Aluminum constructed laminated fiberglass sidewalls
  • Large panoramic tinted safety glass windows w/ black framing
  • Dual-pane frameless windows (Optional)
  • Fiberglass front cap w/ LED lights
  • Fully walkable roof
  • Collapsible roof ladder
  • Norco cable driven slide system w/ manual backup
  • One-piece polypropylene heated underbelly (enclosed tanks and valves)
  • 7,000 lb. flipped Dexter® E-Z Lube axles w/ 12" x 2" brakes on every wheel
  • Leaf spring suspension system
  • 16" aluminum wheels w/ G-rated tires
  • 6PT EQ Smart Leveling
  • 30” wide entry doors
  • LCI® SolidStep® w/ extra-wide first step
  • Lighted pass-through storage
  • Back-up camera/prep
  • Battery disconnect
  • Exterior convenience center
  • Generator prep
  • Onan 5500 watt gasoline generator (Optional)
  • 94 gal. fresh, 88 gal. gray, 44/88 gal. black
  • Fuel station w/ 12V pump, 30-gal. tank, and static line
  • 50-AMP service w/ detachable marine power cord
  • Exterior shower w/ hot and cold water
  • Electric awning w/adjustable arms, auto dump, and LED light strip

Interior

  • Fiberglass backed linoleum floor (carpet-free)
  • Extra tall slide height
  • Night shades
  • Designer upholstered window valances
  • Residential-style furniture w/ heated seats, LED lights, massage, and 110v/USB ports
  • 5000 BTU electric fireplace (Select Models)

Keystone Exclusives

  • Color-coded unified wiring standard
  • 4G LTE and Wi-Fi prep
  • Tuf-Lok™ thermoplastic duct joiners
  • KeyTV™ multisource signal controller
  • In-floor heating ducts
  • Tru-fit™ slide construction

Kitchen

  • Hardwood cabinetry
  • Full-extension ball bearing drawer guides
  • Pressed countertops
  • Deep, single basin, stainless steel sink
  • High-rise faucet w/ pull-out sprayer
  • Swivel bar stools (Select Models)

Appliances & Utilities

  • (2) 30 lb. LP tanks
  • Omni Chill™ 3/4 ton high efficiency A/C
  • 2nd ¾ ton A/C (Optional)
  • 35K BTU furnace
  • Girard On Demand Hot Water Heater
  • LED TV and Bluetooth® CD/DVD player w/ MP3 connection, 2 interior, and 2 exterior speakers
  • 8 cu. ft. gas/electric refrigerator (Select Models)
  • 12 cu. ft. gas/electric refrigerator (Select Models)
  • Microwave oven
  • Furrion® 3-burner gas range and stove w/ low profile hood vent
  • Washer/dryer prep
  • Recessed LED puck lighting throughout

Bedroom

  • King bed suite w/ storage
  • Reading lights
  • Bedside outlets/USB
  • Under bed storage
  • TV hook-up
  • TV prep

Bathroom

  • Pressed countertops
  • Oversized shower w/ skylight
  • Porcelain base foot flush toilet

Safety

  • Tire Pressure Monitoring System on all tires w/ Display
  • Breakaway switch and safety chains
  • GFI receptacles
  • Carbon monoxide detector
  • Smoke detector
  • Propane gas leak detector
  • Fire extinguisher

Garage

  • Gas/oil resistant tuff-ply flooring
  • 5k interlock system w/ frame welded tie-downs
  • 8’ ramp door
  • Half bath (Select Models)
  • Ducted A/C, ducted heat
  • (2) metal ram air vents
  • Dual electric beds w/ collapsible roll-over sofa
  • Sliding rear patio door (Optional)

SolarFlex

  • SolarFlex™ 200
  • SolarFlex™ 400i (Optional)
  • SolarFlex™ 600i-L (Optional)
  • (2) 100 AMP Hour Dragonfly Lithium Batteries (Optional)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.



















Manu-Facts:

Keystone RV

When Cole Davis founded Keystone RV in 1996 his vision was clear: to build a quality RVs loaded with features, and provided exceptional value to owners. To accomplish his goal, Cole would recruit and build a strong team, focus on keeping overhead low, and empower the people closest to the customer to make decisions.



Today, Keystone RV Company is the #1 manufacturer of towable RV’s in North America with more than a million owners, 5,000 team members and over a million square feet of manufacturing in Goshen, Indiana and Pendleton, Oregon. Although a lot has changed, Cole’s wisdom still guides us. Our goal is to surprise and delight our owners at each and every touchpoint, providing them with the information, quality, and assurance they need to move in the direction of their dreams – to Live It Out™
