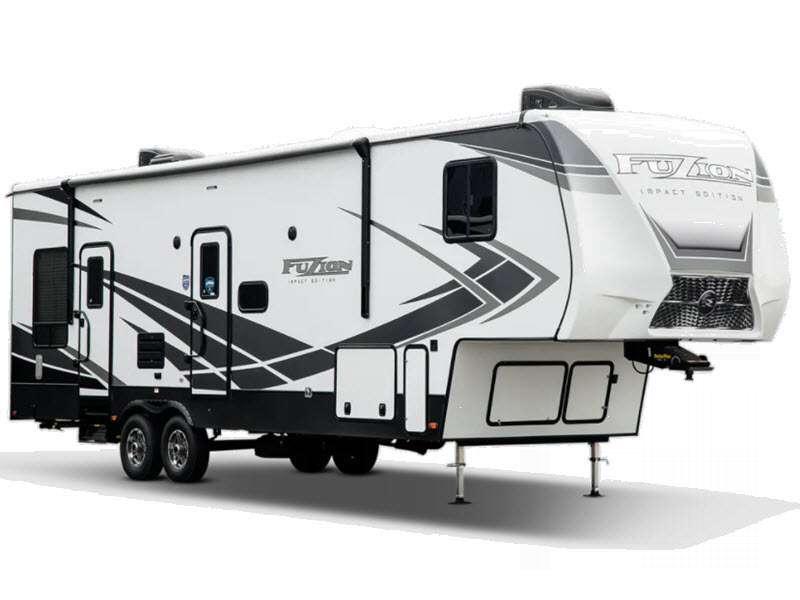

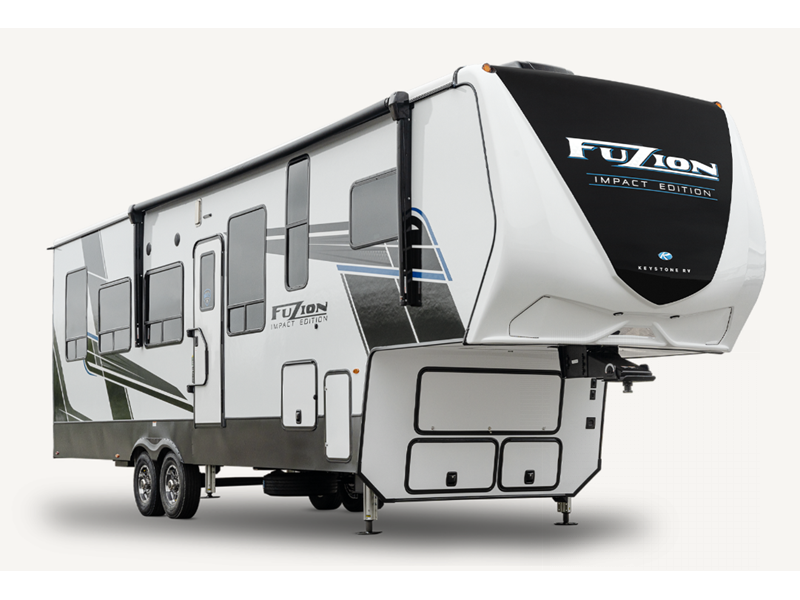

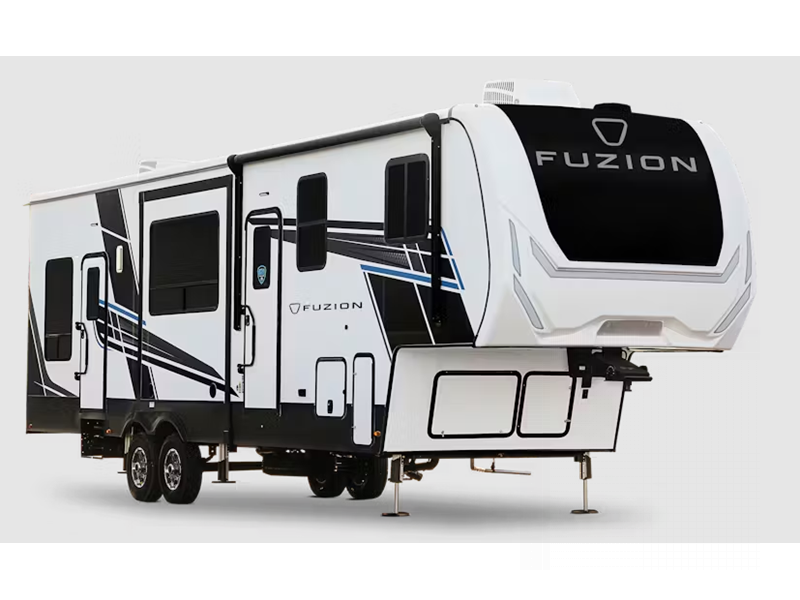

Keystone RV Fuzion Impact Edition Toy Hauler Fifth Wheel RVs For Sale
The Fuzion Impact Edition toy haulers by Keystone offer a lighter, easy-to-tow travel trailer or fifth wheel that is focused on value and fun. The Fuzion Impact Edition is tougher when you need it, and provides technology that transforms and offers unexpected conveniences.
Each model features a leaf spring suspension system, in-floor heating ducts, and a wide-body construction to fit your favorite toys on board. Inside, you will love night shades, hardwood cabinetry, and full-extension ball bearing drawer guides. And check out the garage with its 8' ramp door, ducted A/C and heating, and additional sleeping space for guests!
Choose a Keystone Fuzion Impact Edition toy hauler travel trailer or toy hauler fifth wheel today for adventures tomorrow!
-
Fuzion Impact Edition 337
Keystone Fuzion Impact Edition toy hauler 337 highlights: Full and Half Bath ... more about Fuzion Impact Edition 337
Specifications
Sleeps 9 Slides 3 Length 36 ft 7 in Ext Width 8 ft 4 in Ext Height 13 ft 3 in Interior Color Charcoal, Stone Hitch Weight 2700 lbs Dry Weight 12795 lbs Cargo Capacity 3905 lbs Fresh Water Capacity 94 gals Grey Water Capacity 88 gals Black Water Capacity 74 gals Tire Size ST235/80R16G Furnace BTU 35000 btu Fuel Capacity 30 gals Number Of Bunks 1 Available Beds King Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Number of Awnings 1 Axle Weight 7000 lbs Garage Size 11 ft LP Tank Capacity 30 lbs Water Heater Type Girard On Demand TV Info LR LED TV Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Light Strip Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 2 Shower Type Shower w/Seat Electrical Service 50 amp Similar Floorplans
-
Fuzion Impact Edition 367
Keystone Fuzion Impact Edition toy hauler 367 highlights: Full and Half Bath ... more about Fuzion Impact Edition 367
Specifications
Sleeps 9 Slides 3 Length 40 ft 2 in Ext Width 8 ft 4 in Ext Height 13 ft 3 in Interior Color Charcoal, Stone Hitch Weight 3105 lbs Dry Weight 13150 lbs Cargo Capacity 3955 lbs Fresh Water Capacity 94 gals Grey Water Capacity 88 gals Black Water Capacity 88 gals Tire Size ST235/80R16G Furnace BTU 35000 btu Fuel Capacity 30 gals Number Of Bunks 1 Available Beds King Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Number of Awnings 1 Axle Weight 7000 lbs Garage Size 14 ft LP Tank Capacity 30 lbs Water Heater Type Girard On Demand TV Info LR LED TV Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Light Strip Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 2 Shower Type Shower w/Seat Electrical Service 50 amp Similar Floorplans
-
Fuzion Impact Edition 3120
Keystone Fuzion Impact Edition toy hauler 3120 highlights: Dual Opposing Sofas ... more about Fuzion Impact Edition 3120
Have a question about this floorplan? Contact Us
Specifications
Sleeps 8 Slides 1 Length 35 ft 3 in Ext Width 8 ft 4 in Ext Height 13 ft 2 in Interior Color Charcoal, Stone Hitch Weight 2670 lbs Dry Weight 11823 lbs Cargo Capacity 4847 lbs Fresh Water Capacity 188 gals Grey Water Capacity 44 gals Black Water Capacity 44 gals Tire Size ST235/80R16G Furnace BTU 35000 btu Fuel Capacity 30 gals Number Of Bunks 1 Available Beds King Refrigerator Type 12V Cooktop Burners 3 Number of Awnings 1 Garage Size 20 ft LP Tank Capacity 30 lbs Water Heater Type Girard On Demand TV Info LR LED TV Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Fuzion Impact Edition 3423
Keystone Fuzion Impact Edition toy hauler 3423 highlights: Free-Standing Dinette ... more about Fuzion Impact Edition 3423
Have a question about this floorplan? Contact Us
Specifications
Sleeps 7 Slides 2 Length 39 ft 10 in Ext Width 8 ft 4 in Ext Height 13 ft 2 in Interior Color Charcoal, Stone Hitch Weight 2745 lbs Dry Weight 12531 lbs Cargo Capacity 4214 lbs Fresh Water Capacity 188 gals Grey Water Capacity 44 gals Black Water Capacity 44 gals Tire Size ST235/80R16G Furnace BTU 35000 btu Fuel Capacity 30 gals Number Of Bunks 1 Available Beds King Refrigerator Type 12V Cooktop Burners 3 Number of Awnings 1 Garage Size 23 ft LP Tank Capacity 30 lbs Water Heater Type Girard On Demand TV Info LR LED TV Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights Axle Count 2 Number of LP Tanks 2 Shower Type Standard Electrical Service 50 amp Similar Floorplans
-
Fuzion Impact Edition 343
Keystone Fuzion Impact Edition toy hauler 343 highlights: Kitchen Island Three ... more about Fuzion Impact Edition 343
Have a question about this floorplan? Contact Us
Specifications
Sleeps 9 Slides 3 Length 39 ft Ext Width 8 ft 4 in Ext Height 13 ft 1 in Interior Color Charcoal, Stone Hitch Weight 2905 lbs Dry Weight 12694 lbs Cargo Capacity 4206 lbs Fresh Water Capacity 94 gals Grey Water Capacity 86 gals Black Water Capacity 44 gals Tire Size ST235/80R16G Furnace BTU 35000 btu Fuel Capacity 30 gals Number Of Bunks 1 Available Beds King Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Number of Awnings 1 Axle Weight 7000 lbs Garage Size 13 ft LP Tank Capacity 30 lbs Water Heater Type Girard On Demand TV Info LR LED TV Awning Info 13' Electric with Adjustable Arms, Auto Dump, LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 2 Shower Type Neo-Angled Electrical Service 50 amp Similar Floorplans
-
Fuzion Impact Edition 359
Keystone Fuzion Impact Edition toy hauler 359 highlights: Bath and a Half Dual ... more about Fuzion Impact Edition 359
Have a question about this floorplan? Contact Us
Specifications
Sleeps 8 Slides 2 Length 39 ft Ext Width 8 ft 4 in Ext Height 13 ft 1 in Interior Color Charcoal, Stone Hitch Weight 2880 lbs Dry Weight 12915 lbs Cargo Capacity 3965 lbs Fresh Water Capacity 94 gals Grey Water Capacity 88 gals Black Water Capacity 88 gals Tire Size ST235/80R16G Furnace BTU 35000 btu Fuel Capacity 30 gals Number Of Bunks 1 Available Beds King Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Number of Awnings 1 Axle Weight 7000 lbs Garage Size 10 ft LP Tank Capacity 30 lbs Water Heater Type Girard On Demand TV Info LR LED TV Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 2 Shower Type Neo-Angled Electrical Service 50 amp Similar Floorplans
-
Fuzion Impact Edition 415
Keystone Fuzion Impact Edition toy hauler 415 highlights: Triple Axles U-Shaped ... more about Fuzion Impact Edition 415
Have a question about this floorplan? Contact Us
Specifications
Sleeps 9 Slides 2 Length 44 ft Ext Width 8 ft 4 in Ext Height 13 ft 3 in Interior Color Charcoal, Stone Hitch Weight 3155 lbs Dry Weight 14154 lbs Cargo Capacity 4846 lbs Fresh Water Capacity 94 gals Grey Water Capacity 88 gals Black Water Capacity 88 gals Tire Size ST235/80R16F Furnace BTU 35000 btu Fuel Capacity 30 gals Number Of Bunks 1 Available Beds King Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Number of Awnings 1 Axle Weight 7000 lbs Garage Size 15 ft LP Tank Capacity 30 lbs Water Heater Type Girard On Demand TV Info LR LED TV Awning Info 20' Electric with Adjustable Arms, Auto Dump, LED Lights Axle Count 3 Washer/Dryer Available Yes Number of LP Tanks 2 Shower Type Neo-Angled Electrical Service 50 amp Similar Floorplans
Fuzion Impact Edition Features:
Standard Features
PLEASE NOTE: Features and options separated by type below
---------------------------------------------------------
TRAVEL TRAILERS
Exterior
- 10"/12" I-beams w/ frame welded tie downs and 100" wide body (Select Models)
- 8" I-beams w/frame welded tie downs and 100" wide body (Select Models)
- Aluminum constructed laminated fiberglass sidewalls
- Large panoramic tinted safety glass windows w/ black framing
- Dual-pane frameless windows (Optional) (Select Models)
- Diamond plate rock guard on cap
- 3/4 front cap (Select Models)
- Norco cable driven slide system w/ manual backup
- One-piece polypropylene heated underbelly (enclosed tanks and valves)
- 7,000 lb. flipped Dexter® E-Z Lube axles w/ 12" x 2" brakes on every wheel (Select Models)
- 4,400 lb. flipped Dexter® E-Z lube axles (Select Models)
- 5,100 lb. flipped Dexter E-Z Lube axles (Select Models)
- Leaf spring suspension system
- 16" aluminum wheels w/ F-rated tires (Select Models)
- 15" aluminum wheels w/ E-rated tires (Select Models)
- Electric front and rear stabilizer jacks
- 30” wide entry doors
- Lighted pass-through storage
- Battery disconnect
- Onan 5500 watt gasoline generator (Optional) (Select Models)
- Onan 4000 watt gasoline generator (Optional) (Select Models)
- 94gal. fresh, 60 gal. gray, 30 gal. black (Select Models)
- 60 gal. fresh, 60 gal. gray, 30 gal. black (Select Models)
- Fuel station w/ 12V pump, 30-gal. tank, and static line
- 50-AMP service w/ detachable marine power cord (Select Models)
- 30-AMP service w/ detachable marine power cord (Select Models)
- Exterior shower w/ hot and cold water
- Electric awning w/adjustable arms, auto dump, and LED light strip
Interior
- Fiberglass backed linoleum floor (carpet-free)
- Extra tall slide height (select models)
- Night shades
- Designer upholstered window valances
- Residential-style furniture w/ heated seats, LED lights, massage, and 110v/USB ports (Select Models)

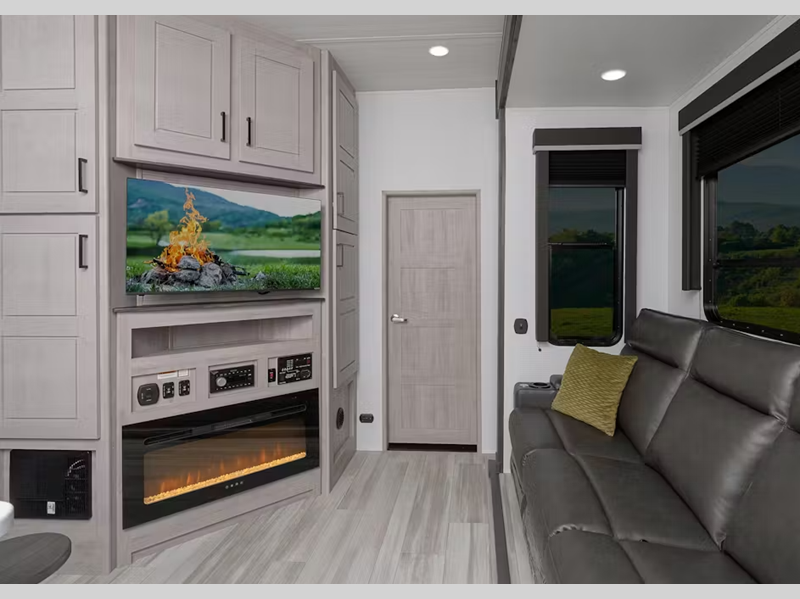

- 5K BTU electric fireplace (Select Models)
Keystone Exclusives
- Color-coded unified wiring standard
- 4G LTE and Wi-Fi prep
- Tuf-Lok™ thermoplastic duct joiners
- KeyTV™ multisource signal controller
- In-floor heating ducts
- Tru-fit™ slide construction

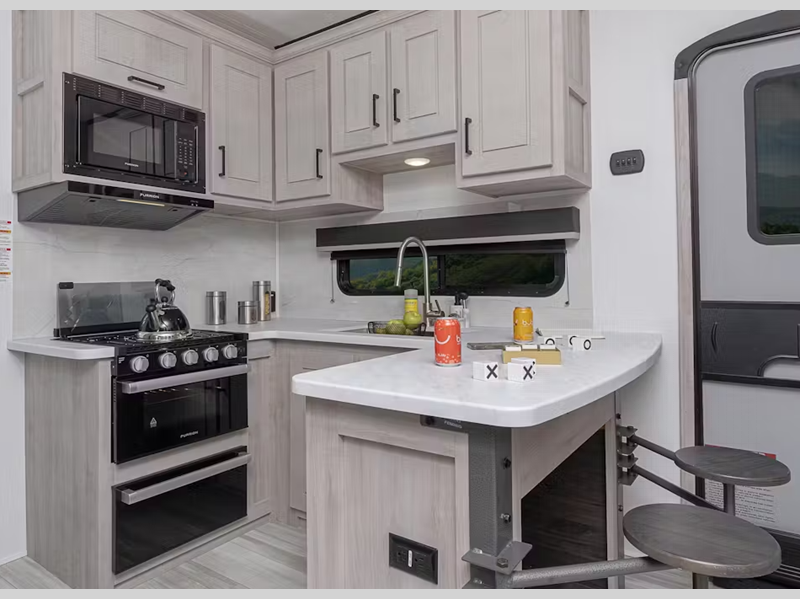

Kitchen
- Hardwood cabinetry
- Full-extension ball bearing drawer guides
- Pressed countertops (Select Models)
- Deep, single basin, stainless steel sink
- High-rise faucet w/ pull-out sprayer
- Swivel bar stools (select models)
- Booth dinette (select models)
Appliances & Utilities
- (2) 30 lb. LP tanks
- Omni Chill™ 3/4 ton high efficiency A/C
- 2nd ¾ ton A/C (Optional) (Select Models)
- 35K BTU furnace
- Girard On Demand Hot Water Heater
- Smart TV and Bluetooth CD/DVD player w/MP3 connection, 2 interior, and 2 exterior speakers
- 16 Cu. Ft. 12V refrigerator (Select Models)
- 10 cu. ft. 12V refrigerator (Select Models)
- Microwave oven
- Furrion® 3-burner gas range and stove w/ low profile hood vent
- Washer/dryer prep (Select Models)
- Recessed LED puck lighting throughout

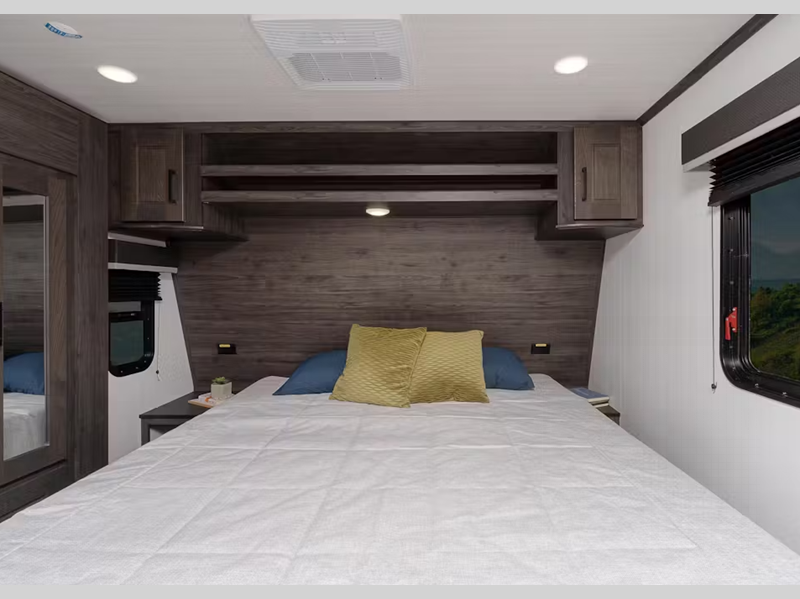

Bedroom
- 60" x 80" residential queen-sized bed
- Reading lights
- Bedside outlets/USB
- Under bed storage
- TV hook-up

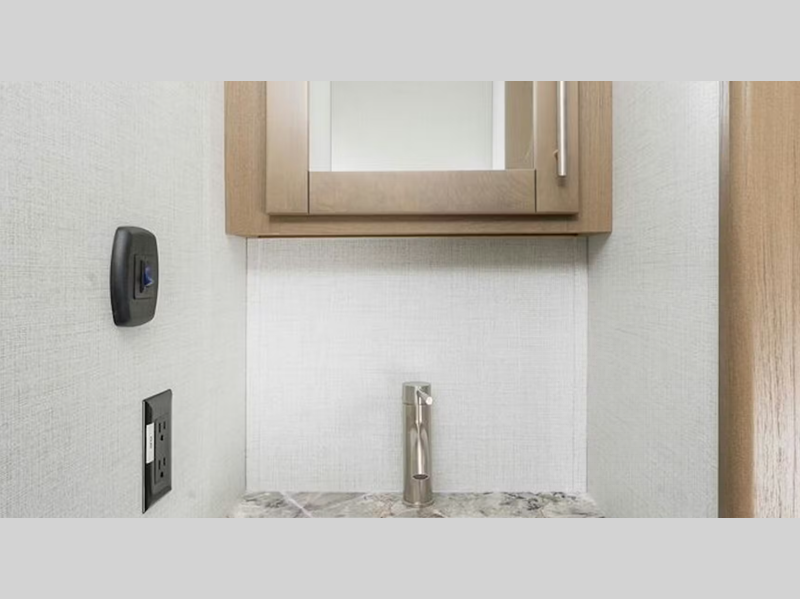

Bathroom
- Pressed countertops
- Skylight over tub (Select Models)
- Porcelain base foot flush toilet
Safety
- Tire Pressure Monitoring System on all tires w/ Display
- Breakaway switch and safety chains
- GFI receptacles
- Carbon monoxide detector
- Smoke detector
- Propane gas leak detector
- Fire extinguisher

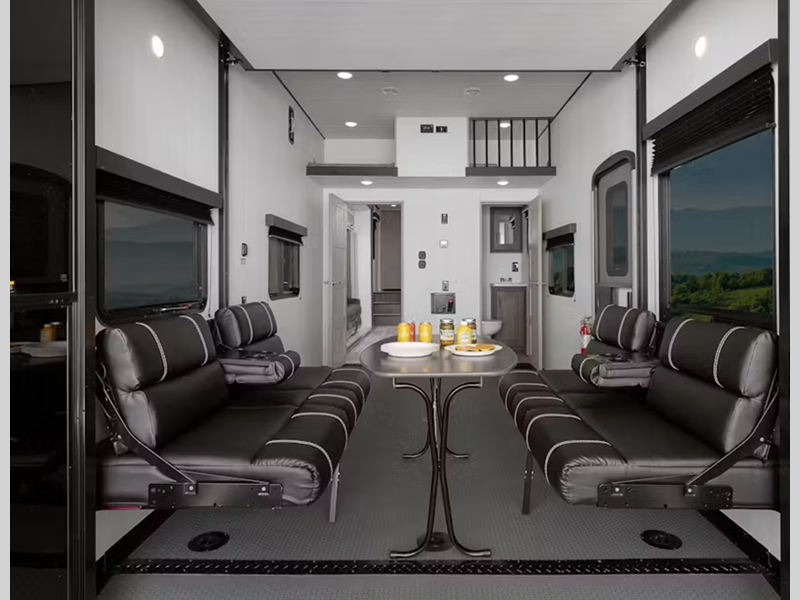

Garage
- Gas/oil resistant tuff-ply flooring (select models)
- 5k interlock system w/ frame welded tie-downs
- 8’ ramp door
- Ducted A/C, ducted heat
- TV prep (select models)
- (2) metal ram air vents
- Dual electric beds w/ collapsible roll-over sofa (select models)
- HappiJac® bed system w/ table and upper bunk (select models) (optional on select models)
- Flip up rollover sofas w/strutted upper bunk (select models)
Individual Options
- Rear patio package
-----------------------------------------------------------------
FIFTH WHEELS
Exterior
- 10"/12" I-beams w/ frame welded tie downs and 100" wide body
- Rota-Flex™ pin box
- Aerodynamic fiberglass front cap w/ lights and improved turning radius
- Aluminum constructed laminated fiberglass sidewalls
- Large panoramic tinted safety glass windows w/ black framing
- Dual-pane frameless windows (Optional)
- Fiberglass front cap w/ LED lights
- Fully walkable roof
- Collapsible roof ladder
- Norco cable driven slide system w/ manual backup
- One-piece polypropylene heated underbelly (enclosed tanks and valves)
- 7,000 lb. flipped Dexter® E-Z Lube axles w/ 12" x 2" brakes on every wheel
- Leaf spring suspension system
- 16" aluminum wheels w/ G-rated tires
- Titan™ 6 point hydraulic leveling
- 30” wide entry doors
- Lippert SolidStep® w/ extra-wide first step
- Lighted pass-through storage
- Back-up camera/prep
- Battery disconnect
- Exterior convenience center
- Generator prep
- Onan 5500 watt gasoline generator (Optional)
- 94 gal. fresh, 88 gal. gray, 44/88 gal. black
- Fuel station w/ 12V pump, 30-gal. tank, and static line
- 50-AMP service w/ detachable marine power cord
- Exterior shower w/ hot and cold water
- Electric awning w/adjustable arms, auto dump, and LED light strip
Interior
- Fiberglass backed linoleum floor (carpet-free)
- Extra tall slide height
- Night shades
- Designer upholstered window valances
- Residential-style furniture w/ heated seats, LED lights, massage, and 110v/USB ports (select models)
- 5000 BTU electric fireplace (Select Models)
- Hardwood Cabinetry
Keystone Exclusives
- Color-coded unified wiring standard
- 4G LTE and Wi-Fi prep
- Tuf-Lok™ thermoplastic duct joiners
- KeyTV™ multisource signal controller
- In-floor heating ducts
- Tru-fit™ slide construction

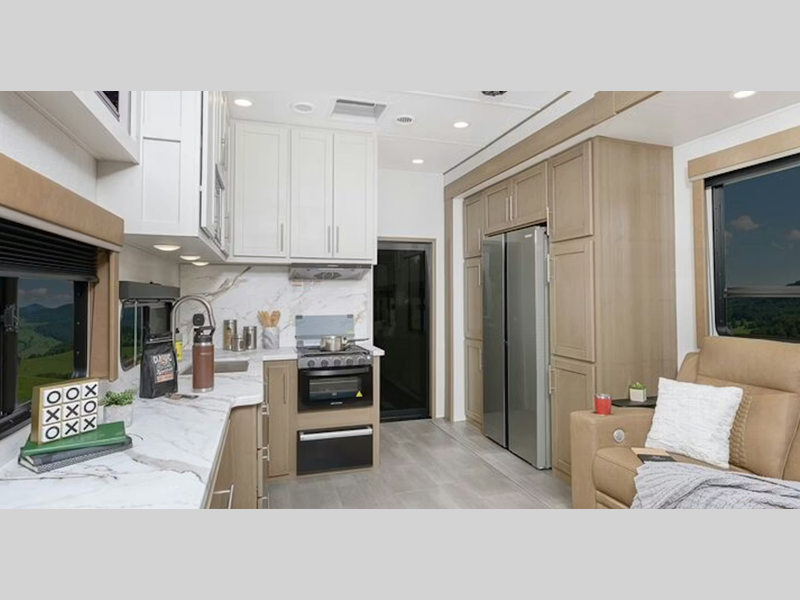

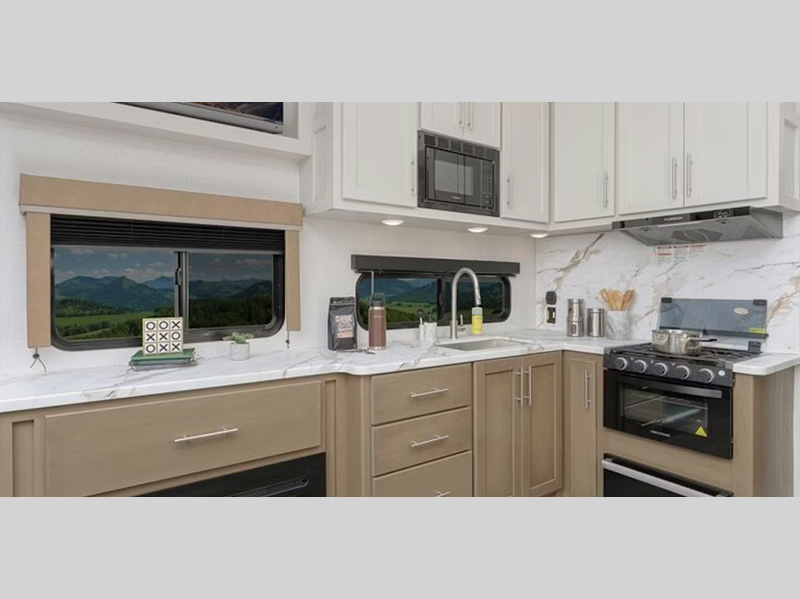

Kitchen
- Full-extension ball bearing drawer guides
- Pressed countertops
- Deep, single basin, stainless steel sink
- High-rise faucet w/ pull-out sprayer
- Swivel bar stools (select models)
- Booth Dinette (select models)
Appliances & Utilities
- (2) 30 lb. LP tanks
- Omni Chill™ 3/4 ton high efficiency A/C
- 2nd ¾ ton A/C (Optional)
- 35K BTU furnace
- Girard On Demand Hot Water Heater
- Smart TV and Bluetooth CD/DVD player w/MP3 connection, 2 interior, and two exterior speakers (select models)
- LED TV and Bluetooth CD/DVD player w/MP3 connection, 2 interior, and two exterior speakers (select models)
- 10 Cu. Ft. 12V refrigerator (select models)
- 16 Cu. Ft. 12V refrigerator (select models)
- Microwave oven
- Furrion® 3-burner gas range and stove w/ low profile hood vent
- Washer/dryer prep (select models)
- Recessed LED puck lighting throughout
Bedroom
- King bed suite w/ storage (select models)
- 60" x 80" residential queen-sized bed (select models)
- Reading lights
- Bedside outlets/USB
- Under bed storage
- TV hook-up
Bathroom
- Pressed countertops
- Oversized shower w/ skylight (Select Models)
- Porcelain base foot flush toilet
Safety
- Tire Pressure Monitoring System on all tires w/ Display
- Breakaway switch and safety chains
- GFI receptacles
- Carbon monoxide detector
- Smoke detector
- Propane gas leak detector
- Fire extinguisher

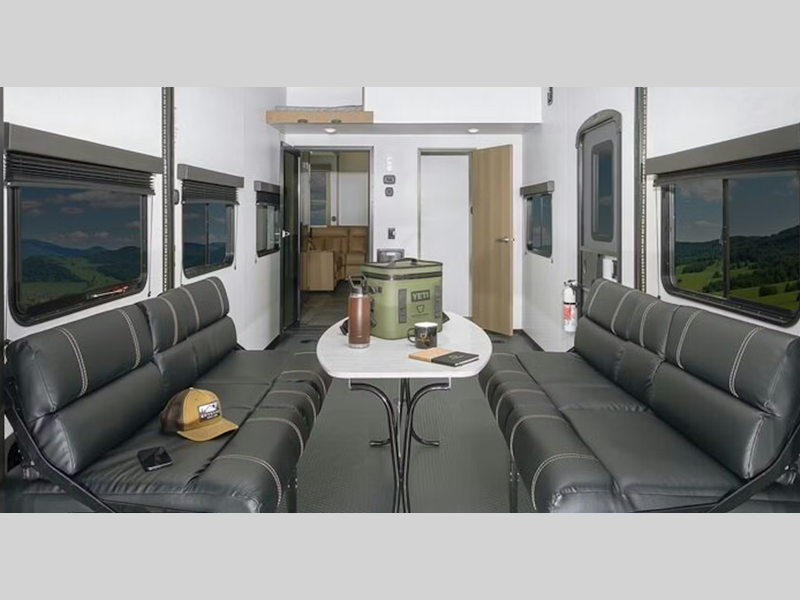

Garage
- Gas/oil resistant tuff-ply flooring
- 5k interlock system w/ frame welded tie-downs
- 8’ ramp door
- Half bath (Select Models)
- Ducted A/C, ducted heat
- (2) metal ram air vents
- Dual electric beds w/ collapsible roll-over sofa (select models) (optional on select models)
- Sliding rear patio door (Optional)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
